Toyota Key Shell
Splitting Apart.
The Board Is Fine.

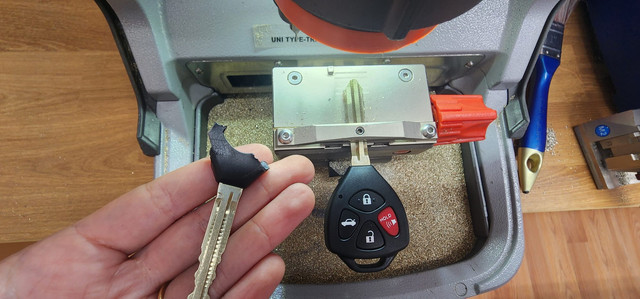

The Toyota remote head key shell fails at the seam — the two plastic halves separate. The car still starts because the electronics are intact. We replace the shell and you're done. No reprogramming. Same day.
Local Lock and Key Advice for Rockland County
Weather shifts, travel days, holidays, and season changes expose weak locks, worn keys, cracked shells, and hardware that has been warning you for a while. Handle it before it becomes a public failure.
If something feels rough today, do not wait for the day you are already late.
The Toyota Shell Seam — and Why It Lets Go
The Toyota remote head key is two plastic halves clipped together at a seam that runs around the perimeter of the key head. The clips are small, made of the same plastic as the housing, and they take the full mechanical load of every drop, squeeze, and pocket friction the key experiences.
Over time the clips fatigue. The seam begins to open — usually at one corner first. Once that corner lets go, the rest of the seam follows progressively. The car still starts throughout this process because the transponder chip and circuit board inside are not affected by the shell separating.
By the time most customers come in, the two halves are visibly gapping, the button pad is shifting, and one or more buttons have become intermittent. The fix is always the same: new shell, board transfer, done.
Corner clip fails — tiny gap appears at one corner
Gap spreads along the seam — halves begin to separate
Button pad shifts — intermittent button response
Full separation — key held together by hand or tape
New shell — board transfers, no programming
The circuit board sits inside the lower shell half, protected by the housing walls even after the seam opens. The transponder chip, remote ID, and all programming are completely unaffected. The board is always fine.
Toyota Shell Separation — Step by Step
The seam runs around the entire perimeter of the key head. Watch how one corner failure propagates to full separation.
Shell Out, Board In. Same Key.
The damaged shell comes off. The board — which was never affected — transfers into a new housing. No programming because we never touched the electronics.
- ⚠️Shell seam splitting or fully open
- ⚠️Button pad shifting — intermittent response
- ⚠️Key head held together by hand or tape
- ⚠️Panic button area cracked or deformed
- ✅Board, transponder, remote ID: all working
- ✅Car starts normally throughout
- ✅New shell — solid, seam properly clipped
- ✅Button pad seated correctly, all buttons click
- ✅Same board — starts the car as before
- ✅Same remote ID — no reprogramming needed
- ✅Fraction of dealer replacement cost
- ✕Cracked or separated plastic housing
- ✕Worn seam clips that failed
- ✕Nothing electronic, ever
- ✓Circuit board and all remote functions
- ✓Transponder chip (starts the car)
- ✓All programming — zero reprogramming cost
- ✓CR2032 battery
What Toyota Key Seam Failures Look Like
Visible gap along the edge where the two shell halves meet. May be at one corner only, or running most of the perimeter. Sometimes with an audible click when the key is squeezed.
Shell replacement. Board transfers into the new housing. No programming. Most Toyota shell jobs are done in under an hour.
Once the seam opens, the button pad inside can shift position — causing one or more buttons to lose contact with the circuit board's switches. The board itself is fine; the geometry has changed.
Shell replacement restores the correct internal geometry. If the car starts (transponder working), the board is fine and a shell swap resolves the button issue.
The corner near the panic button is the most common failure origin — it takes the most direct impact from drops and the most friction from pocket use. The corner piece may break off completely.
Full shell replacement — the housing is one piece and can't be partially repaired. Board transfer into a new complete shell. Same-day.
The lower portion of the key head — where the blade attaches — can separate from the upper body as the seam fails around the bottom edge. The blade still works but the housing wobbles.
Shell replacement. Bring all pieces in — even if the key is in multiple sections, the board and blade both transfer into the new housing.
The transponder chip (which starts the car) is separate from the remote circuit (which operates the locks). The seam failing almost always affects remote function before ignition. If the car starts, the chip is fine.
Shell replacement. Starting = chip is fine. Remote intermittence is the shell geometry failing, not an electronics issue.
The seam has opened far enough that tape is holding the key together. The board is almost always intact regardless of how the shell looks. We see this constantly — it's a straightforward repair.
Bring it in with all pieces. Board transfers into new shell regardless of how fragmented the old housing is. Same board, no programming.
What Happens at Our Spring Valley Shop
Board Inspection First
We separate the shell halves and check the board for any secondary damage from the housing failure. In virtually every Toyota seam case the board is completely undamaged.
Shell Variant Confirmed
Toyota shells vary by model, year, and button count. We match the correct replacement for your key — Camry, Corolla, RAV4, Lexus variant, button count, and key ring all verified.
Board Transfer
Circuit board, transponder chip, and battery move into the new housing. Shell clips closed properly. Takes about 15 minutes. Programming completely untouched throughout.
Full Function Test
Lock, unlock, trunk, panic tested against your vehicle. Blade tested in ignition. Job isn't done until every button and the ignition are confirmed working.
Frequently Asked
Why is my Toyota key splitting apart at the seam?
My Toyota key is falling apart but the car starts — do I need a new key?
Can I repair a Toyota key that's already in multiple pieces?
Does this work for Lexus keys?
Do I need to reprogram the Toyota key after a shell replacement?
Are you open on Sundays?
Toyota Shell Repair — Rockland County
In-store at our Spring Valley location. Call first to confirm we have your Toyota or Lexus shell in stock.
Toyota Key Splitting Apart?
The Board Is Fine. The Shell Isn't.
Rockland Locksmith replaces Toyota and Lexus key shells same day. Walk-ins welcome. No reprogramming fee. Most jobs are done in under an hour.
Open 24 hours · Sunday through Friday · 274 Old Nyack Turnpike, Spring Valley, NY
